通達信新結構波浪畫圖形指標公式：未來函數：ZIG - 之字轉向

N:=5;
S:=2;
GET:ZIG(3,N),COLORYELLOW;
PL5:=ZIG(3,5);
EN1:=ZIG(3,5)>REF(ZIG(3,5),1) AND REF(ZIG(3,5),1)<=REF(ZIG(3,5),2) AND REF(ZIG(3,5),2)<=REF(ZIG(3,5),3);
EX1:=ZIG(3,5)<REF(ZIG(3,5),1) AND REF(ZIG(3,5),1)>=REF(ZIG(3,5),2) AND REF(ZIG(3,5),2)>=REF(ZIG(3,5),3);
PL10:=ZIG(3,13);
EN2:=ZIG(3,10)>REF(ZIG(3,10),1) AND REF(ZIG(3,10),1)<=REF(ZIG(3,10),2) AND REF(ZIG(3,10),2)<=REF(ZIG(3,10),3);
EX2:=ZIG(3,10)<REF(ZIG(3,10),1) AND REF(ZIG(3,10),1)>=REF(ZIG(3,10),2) AND REF(ZIG(3,10),2)>=REF(ZIG(3,10),3);
PL20:=ZIG(3,26);
EN3:=ZIG(3,20)>REF(ZIG(3,20),1) AND REF(ZIG(3,20),1)<=REF(ZIG(3,20),2) AND REF(ZIG(3,20),2)<=REF(ZIG(3,20),3);
EX3:=ZIG(3,20)<REF(ZIG(3,20),1) AND REF(ZIG(3,20),1)>=REF(ZIG(3,20),2) AND REF(ZIG(3,20),2)>=REF(ZIG(3,20),3);
PL40:=ZIG(3,55);
走強1:=BARSLAST(PL5<REF(PL5,1));
走弱1:=BARSLAST(PL5>REF(PL5,1));
走強2:=BARSLAST(PL10<REF(PL10,1));
走弱2:=BARSLAST(PL10>REF(PL10,1));
走強3:=BARSLAST(PL20<REF(PL20,1));
走弱3:=BARSLAST(PL20>REF(PL20,1));
ZTJZ5:=IF(PL10>REF(PL10,1),COUNT(EN1,走強2),0);
ZTJD5:=IF(PL10>REF(PL10,1),COUNT(EX1,走強2),0);
DTJZ5:=IF(PL10<REF(PL10,1),COUNT(EN1,走弱2),0);
DTJD5:=IF(PL10<REF(PL10,1),COUNT(EX1,走弱2),0);
ZTJZ10:=IF(PL20>REF(PL20,1),COUNT(EN2,走強3),0);
ZTJD10:=IF(PL20>REF(PL20,1),COUNT(EX2,走強3),0);
DTJZ10:=IF(PL20<REF(PL20,1),COUNT(EN2,走弱3),0);
DTJD10:=IF(PL20<REF(PL20,1),COUNT(EX2,走弱3),0);
DRAWTEXT(EN1 AND DTJZ5=1,L*0.98,'(Ⅰ)'),COLORFFFF00;
DRAWTEXT(EX1 AND DTJD5=2,H*1.02,'(Ⅱ)'),COLORFFFF00;
DRAWTEXT(EN2 AND ZTJZ5=1,L*0.98,'(Ⅲ)'),COLORFFFF00;
DRAWTEXT(EX1 AND PL10>REF(PL10,1) AND ZTJD5=1,H*1.02,'⑴'),COLORFF0000;
DRAWTEXT(EN1 AND PL10>REF(PL10,1) AND ZTJZ5=2,L*0.98,'⑵'),COLORFF0000;
DRAWTEXT(EX1 AND PL10>REF(PL10,1) AND ZTJZ5=2,H*1.02,'⑶'),COLORFF0000;
DRAWTEXT(EN1 AND PL10>REF(PL10,1) AND ZTJZ5=3,L*0.98,'⑷'),COLORFF0000;
DRAWTEXT(EX2 AND PL20>REF(PL20,1) AND ZTJD10=1,H*1.02,'⑸'),COLORFF0000;
DRAWTEXT(EN2 AND DTJZ10=1,L*0.94,'【A】'),COLOR00FF00;
DRAWTEXT(EX2 AND DTJD10=2,H*1.03,'【B】'),COLOR00FF00;
DRAWTEXT(EN3 AND ZTJZ10=1,L*0.94,'【C】'),COLOR00FF00;
DRAWTEXT(EX2 AND PL20>REF(PL20,1) AND ZTJD10=1,H*1.04,'①'),LINETHICK3,COLORFFFFFF;
DRAWTEXT(EN2 AND PL20>REF(PL20,1) AND ZTJZ10=2,L*0.94,'②'),LINETHICK3,COLORFFFFFF;
DRAWTEXT(EX2 AND PL20>REF(PL20,1) AND ZTJD10=2 OR (ZTJD10=0 OR ZTJD10=2) AND EX2,H*1.04,'③'),LINETHICK3,COLORFFFFFF;
DRAWTEXT(EN2 AND PL20>REF(PL20,1) AND ZTJZ10=3,L*0.94,'④'),LINETHICK3,COLORFFFFFF;
DMLJ:=HHV(H,120);
E:=(H+L+O+2*C)/5;
CRTP:=E+(H-L);
CRZL:=2*E-L;
CRZC:=2*E-H;
CRFZ:=E-(H-L);
CRXL:=(E+CRTP+CRZL+CRZC+CRFZ)/5;
高:=CONST(CRTP),COLORRED;
阻:=CONST(CRZL),COLORC7C9FF;
支:=CONST(CRZC),COLOR7C9CFF;
反:=CONST(CRFZ),COLORDD00DD;
心理:=CONST(CRXL);
高TP:DRAWLINE(S>1&&CURRBARSCOUNT=5+1,高,ISLASTBAR,高,1),COLOR0000FF;
IF(S=1, CRTP,DRAWNULL),COLORRED;
阻力:DRAWLINE(S>1&&CURRBARSCOUNT=5+1,阻,ISLASTBAR,阻,1),COLORC7C9FF;
IF(S=1, CRZL,DRAWNULL),COLORC7C9FF;
支撐:DRAWLINE(S>1&&CURRBARSCOUNT=5+1,支,ISLASTBAR,支,1),COLOR7C9CFF;
IF(S=1, CRZC,DRAWNULL),COLOR7C9CFF;
反轉價:DRAWLINE(S>1&&CURRBARSCOUNT=5+1,反,ISLASTBAR,反,1),COLORDD00DD;
IF(S=1, CRFZ,DRAWNULL),COLORDD00DD;
次日心理價:DRAWLINE(S>1&&CURRBARSCOUNT=5+1,心理,ISLASTBAR,心理,1),COLORGREEN;
IF(S=1, CRXL,DRAWNULL),COLORGREEN;
DRAWTEXT(ISLASTBAR,反,'反轉價'),LINETHICK1,COLORDD00DD;
DRAWTEXT(ISLASTBAR,支,'支撐'),LINETHICK1,COLOR7C9CFF;
DRAWTEXT(ISLASTBAR,阻,'阻力'),LINETHICK1,COLORC7C9FF;
DRAWTEXT(ISLASTBAR,高,'高TP'),LINETHICK1,COLOR0000FF;{
DRAWTEXT(ISLASTBAR,心理,'心理價'),COLORGREEN;}
T1:=CONST(LLVBARS(LOW,10));
T1HIGH:=CONST(REF(HIGH,T1));
CC:=CONST(CURRBARSCOUNT);
T2:=CONST(BARSLAST(CURRBARSCOUNT>CC+T1 AND H>T1HIGH));
T2HIGH:=CONST(REF(HIGH,T2));
T3:=CONST(BARSLAST(CURRBARSCOUNT>CC+T2 AND HIGH>T2HIGH));
T3HIGH:=CONST(REF(HIGH,T3));
獵擊線:DRAWLINE(CURRBARSCOUNT=T3+1, T3HIGH, ISLASTBAR, T3HIGH, 1),LINETHICK2,COLOR0000FF;
DRAWTEXT(ISLASTBAR, T3HIGH, '獵擊線')LINETHICK1,COLOR0000FF;

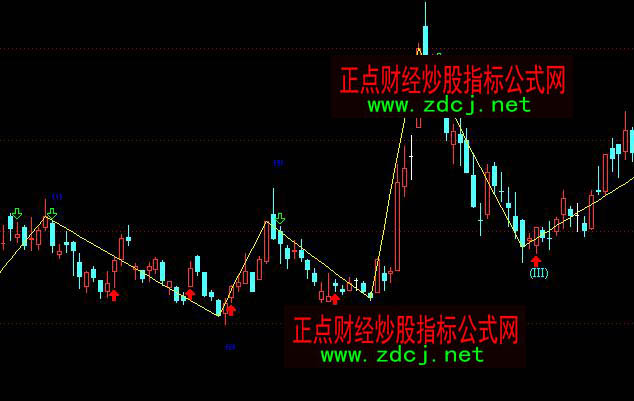

通達信新結構波浪畫圖形指標公式實例圖解：

通達信新結構波浪畫圖形指標公式
